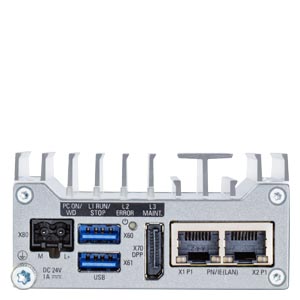

西门子工控机 SIMATIC IPC127E：
超紧凑型物联网网关，用于数据收集、预处理和数据传输
由于采用体积仅为 0.3 升的超紧凑外壳，SIMATIC IPC127E 可方便地（甚至在以后使用时）集成到控制柜中或直接集成到机器上，所占用的空间极小。
凭借封闭式全金属外壳，这种新工业 PC 即使在恶劣条件下也能灵活和免维护地使用。因此，SIMATIC IPC127E 能够直接在生产环境中可靠记录/收集/处理/传输数据，并可灵活用作云或公司 IT 层与生产环境之间的物联网网关。由于提供了预配置的型号，用户可在很短时间内得到适宜产品。
设计极为紧凑，可执行高性能数据处理
· Intel-Apollo-Lake 系列的最新 CPU 技术
· 2 核：Intel E3930 和 4 核：Intel E3940
· 功耗 <= 15 W，即，外壳/控制柜内的散热量极低
· 唤醒局域网，用于待机和活动状态之间的远程控制切换
极强的工业功能，适合实现嵌入式解决方案
· 固态硬盘作为紧固耐用的海量存储介质：32 / 64 / 128 GB
· 2x / 3x 千兆位以太网（具有协同能力），带有 RT 功能的 PROFINET（通过标准以太网）
· 2x / 4x USB 3.0 端口
· 1x DisplayPort 作为显示接口
· Windows 10 LTSB 2016，含嵌入功能，如 Unified Write Filter (UWF)
系统可用性高，可降低潜在故障风险和维护成本
· 没有旋转部件（风扇和硬盘），因此免维护
· 通过本地诊断软件 SIMATIC IPC DiagBase 进行自诊断
极为灵活，可针对具体机器进行调整
· 灵活安装（DIN 导轨安装和墙壁安装）
· 在所有垂直安装位置上
· 空间要求极低（所需的安装体积大约 0.3 升；集成 24 V DC 工业电源）
· 高达 50 °C 的环境温度；采用封闭式外壳，具有防尘保护
· 通过 LED 灯进行高效自诊断；经过优化，可实现无人看管的运行
投资安全性高，可降低工程组态成本
· 长期可用性：上市后，可提供 8 到 10 年的服务和支持
适合各种各样的应用，例如：
· 作为物联网网关，采集/收集/处理/传输数据
· 将机器设备集成在 Cloud/Edge 解决方案中
· /改造棕地系统中的数字化任务
· 简单可视化任务
基本设计
· 全金属外壳，抗振和抗冲击性强，电磁兼容性高
o 基本型号
o 扩展型号
· 工业电源数据
o 24 V DC（19.2 - 28.8 V；无电隔离）
· DisplayPort 图形接口
o 分辨率：高达 4096 x 2160 像素
· 接口（位于一侧）：
o 基本型：2 x 10/100/1000 Mbit/s 以太网接口 (RJ45)；2 x USB V3.0
o 扩展型：3x LAN 10/100/1000 Mbit/s 以太网接口 (RJ45)；4 x USB V3.0
· 现场总线
o 通过标准以太网接口实现 PROFINET 实时功能
设计类型
· 处理器/主存储器配置：
o Intel Atom E3930，1.3 GHz，双核 / 2 GB
o Intel Atom E3940，1.6 GHz，双核 / 4 GB
· 驱动器：
o 固态硬盘 32，M.2，内置
o 固态硬盘 64，M.2，内置
o 固态硬盘 128，M.2，内置
o 固态硬盘，断电保护
· 预装的操作系统：
o Windows 10 IoT Enterprise LTSB 2016，MUI，64 位
集成诊断功能 DiagBase
· 集成、可参数化的监控功能（程序执行/看门狗监控器、机箱内部温度、海量存储器）
|
Article number |
6AG4021-0A.1.-..A0 |
|
SIMATIC IPC127E |
|
|
Installation type/mounting |
|
|
Mounting |
DIN rail, wall mounting, portrait mounting |
|
Design |
Box PC, built-in unit |
|
Supply voltage |
|
|
Type of supply voltage |
24 V DC |
|
Mains buffering |
|
|
· ● Mains/voltage failure stored energy time |
5 ms |
|
Drives |
|
|
SSD |
Yes |
|
Memory |
|
|
Capacity of main memory, max. |
4 Gbyte |
|
Interfaces |
|
|
Number of industrial Ethernet interfaces |
3; Ethernet (2x RJ45, optional 3x RJ45) |
|
Connection for keyboard/mouse |
USB / USB |
|
Video interfaces |
|
|
· ● Graphics interface |
1x DisplayPort |
|
Industrial Ethernet |
|
|
· ● Industrial Ethernet interface |
|
|
· — 100 Mbps |
Yes |
|
· — 1000 Mbps |
Yes |
|
Protocols |
|
|
Protocols (Ethernet) |
|
|
· ● TCP/IP |
Yes |
|
Integrated Functions |
|
|
Monitoring functions |
|
|
· ● Temperature monitoring |
Yes |
|
· ● Watchdog |
Yes |
|
· ● Status LEDs |
1x power, 3x user |
|
· ● Fan |
No |
|
· ● Monitoring function via network |
Optional |
|
EMC |
|
|
Interference immunity against discharge of static electricity |
|
|
· ● Interference immunity against discharge of static electricity |
±6 kV contact discharge acc. to IEC 61000-4-2; ±8 kV air discharge acc. to IEC 61000-4-2 |
|
Interference immunity against high-frequency electromagnetic fields |
|
|
· ● Interference immunity against high frequency radiation |
10 V/m, 80 MHz to 2 GHz, 80 % AM acc. to IEC 61000-4-3; 3 V/m, 2 GHz to 2.7 GHz, 80 % AM acc. to IEC 61000-4-3; 10 V, 10 kHz to 80 MHz, 80 % AM acc. to IEC 61000-4-6 |
|
Interference immunity to cable-borne interference |
|
|
· ● Interference immunity on supply cables |
±2 kV (according to IEC 61000-4-4; burst); ±0,5 kV (according to IEC 61000-4-5; surge pulse/line to line); ±1 kV (according to IEC 61000-4-5; surge pulse/line to ground) |
|
· ● Interference immunity on signal cables >30m |
±2 kV acc. to IEC 61000-4-5, surge, length > 30 m |
|
· ● Interference immunity on signal cables < 30m |
±1 kV acc. to IEC 61000-4-4; burst; length < 3 m; ±2 kV acc. to IEC 61000-4-4; burst; length > 3 m |
|
Interference immunity against voltage surge |
|
|
· ● asymmetric interference |
±2 kV acc. to IEC 61000-4-5, surge asymmetric |
|
· ● symmetric interference |
±1 kV acc. to IEC 61000-4-5, surge symmetric |
|
Interference immunity to magnetic fields |
|
|
· ● Interference immunity to magnetic fields at 50 Hz |
100 A/m; to IEC 61000-4-8 |
|
Emission of conducted and non-conducted interference |
|
|
· ● Interference emission via line/AC current cables |
EN 61000-6-4:2007 +A1:2011 (industrial environments), EN 61000-6-3:2007 +A1:2011 (residential environments), CISPR 22 Class B, FCC Class A |
|
Degree and class of protection |
|
|
IP degree of protection |
IP40 |
|
Standards, approvals, certificates |
|
|
CE mark |
Yes |
|
UL approval |
Yes |
|
RCM (formerly C-TICK) |
Yes |
|
EAC (formerly Gost-R) |
Yes |
|
FCC |
Yes |
|
EMC |
CE, EN 61000-6-4:2007, EN 61000-6-2:2005 |
|
Dust protection |
Protection against foreign bodies > 1 mm |
|
Ambient temperature during storage/transportation |
|
|
· ● min. |
-20 °C |
|
· ● max. |
70 °C |
|
Relative humidity |
|
|
· ● Relative humidity |
5 ... 85 % at 30 °C, no condensation |
|
Operating systems |
|
|
without operating system |
Yes; Optional |
|
pre-installed operating system |
|
|
· ● Windows 10 Enterprise |
Yes |
|
Dimensions |
|
|
Width |
85 mm |
|
Height |
85 mm |
|
Depth |
41 mm |
|
Article number |
6AG4021-0AA11-0AA0 |
6AG4021-0AA12-0BA0 |
6AG4021-0AB11-0BA0 |
6AG4021-0AB12-0CA0 |
|
SIMATIC IPC127E |
SIMATIC IPC127E |
SIMATIC IPC127E |
SIMATIC IPC127E |
|
|
Installation type/mounting |
|
|
|
|
|
Design |
Box PC, built-in unit |
Box PC, built-in unit |
Box PC, built-in unit |
Box PC, built-in unit |
|
Supply voltage |
|
|
|
|
|
Type of supply voltage |
24 V DC |
24 V DC |
24 V DC |
24 V DC |
|
Mains buffering |
|
|
|
|
|
· ● Mains/voltage failure stored energy time |
5 ms |
5 ms |
5 ms |
5 ms |
|
Processor |
|
|
|
|
|
Processor type |
Intel Atom E3930, 1.3 GHz, 2 cores |
Intel Atom E3930, 1.3 GHz, 2 cores |
Intel Atom E3940, 1.6 GHz, 4 cores |
Intel Atom E3940, 1.6 GHz, 4 cores |
|
Drives |
|
|
|
|
|
SSD |
Yes; 32 GB |
Yes; 64 GB |
Yes; 64 GB |
Yes; 128 GB |
|
Memory |
|
|
|
|
|
Type of memory |
DDR4 |
DDR4 |
DDR4 |
DDR4 |
|
Main memory |
2 GB RAM |
2 GB RAM |
4 GB RAM |
4 GB RAM |
|
Interfaces |
|
|
|
|
|
Number of industrial Ethernet interfaces |
2; 2x RJ45 (independent) |
3; 3x Ethernet (RJ45) |
2; 2x RJ45 (independent) |
3; 3x Ethernet (RJ45) |
|
Number of PROFINET interfaces |
2 |
3 |
2 |
3 |
|
USB port |
2x USB 3.0 |
4x USB 3.0 |
2x USB 3.0 |
4x USB 3.0 |
|
Connection for keyboard/mouse |
USB / USB |
USB / USB |
USB / USB |
USB / USB |
|
Video interfaces |
|
|
|
|
|
· ● Graphics interface |
1x DisplayPort |
1x DisplayPort |
1x DisplayPort |
1x DisplayPort |
|
Industrial Ethernet |
|
|
|
|
|
· ● Industrial Ethernet interface |
2x Ethernet (RJ45) |
3x Ethernet (RJ45) |
2x Ethernet (RJ45) |
3x Ethernet (RJ45) |
|
· — 100 Mbps |
Yes |
Yes |
Yes |
Yes |
|
· — 1000 Mbps |
Yes |
Yes |
Yes |
Yes |
|
Protocols |
|
|
|
|
|
Protocols (Ethernet) |
|
|
|
|
|
· ● TCP/IP |
Yes |
Yes |
Yes |
Yes |
|
Integrated Functions |
|
|
|
|
|
Monitoring functions |
|
|
|
|
|
· ● Temperature monitoring |
Yes |
Yes |
Yes |
Yes |
|
· ● Watchdog |
Yes |
Yes |
Yes |
Yes |
|
· ● Status LEDs |
1x power, 3x user |
1x power, 3x user |
1x power, 3x user |
1x power, 3x user |
|
· ● Fan |
No |
No |
No |
No |
|
EMC |
|
|
|
|
|
Interference immunity against discharge of static electricity |
|
|
|
|
|
· ● Interference immunity against discharge of static electricity |
±6 kV contact discharge acc. to IEC 61000-4-2; ±8 kV air discharge acc. to IEC 61000-4-2 |
±6 kV contact discharge acc. to IEC 61000-4-2; ±8 kV air discharge acc. to IEC 61000-4-2 |
±6 kV contact discharge acc. to IEC 61000-4-2; ±8 kV air discharge acc. to IEC 61000-4-2 |
±6 kV contact discharge acc. to IEC 61000-4-2; ±8 kV air discharge acc. to IEC 61000-4-2 |
|
Interference immunity against high-frequency electromagnetic fields |
|
|
|
|
|
· ● Interference immunity against high frequency radiation |
10 V/m, 80 MHz to 2 GHz, 80 % AM acc. to IEC 61000-4-3; 3 V/m, 2 GHz to 2.7 GHz, 80 % AM acc. to IEC 61000-4-3; 10 V, 10 kHz to 80 MHz, 80 % AM acc. to IEC 61000-4-6 |
10 V/m, 80 MHz to 2 GHz, 80 % AM acc. to IEC 61000-4-3; 3 V/m, 2 GHz to 2.7 GHz, 80 % AM acc. to IEC 61000-4-3; 10 V, 10 kHz to 80 MHz, 80 % AM acc. to IEC 61000-4-6 |
10 V/m, 80 MHz to 2 GHz, 80 % AM acc. to IEC 61000-4-3; 3 V/m, 2 GHz to 2.7 GHz, 80 % AM acc. to IEC 61000-4-3; 10 V, 10 kHz to 80 MHz, 80 % AM acc. to IEC 61000-4-6 |
10 V/m, 80 MHz to 2 GHz, 80 % AM acc. to IEC 61000-4-3; 3 V/m, 2 GHz to 2.7 GHz, 80 % AM acc. to IEC 61000-4-3; 10 V, 10 kHz to 80 MHz, 80 % AM acc. to IEC 61000-4-6 |
|
Interference immunity to cable-borne interference |
|
|
|
|
|
· ● Interference immunity on supply cables |
±2 kV (according to IEC 61000-4-4; burst); ±0,5 kV (according to IEC 61000-4-5; surge pulse/line to line); ±1 kV (according to IEC 61000-4-5; surge pulse/line to ground) |
±2 kV (according to IEC 61000-4-4; burst); ±0,5 kV (according to IEC 61000-4-5; surge pulse/line to line); ±1 kV (according to IEC 61000-4-5; surge pulse/line to ground) |
±2 kV (according to IEC 61000-4-4; burst); ±0,5 kV (according to IEC 61000-4-5; surge pulse/line to line); ±1 kV (according to IEC 61000-4-5; surge pulse/line to ground) |
±2 kV (according to IEC 61000-4-4; burst); ±0,5 kV (according to IEC 61000-4-5; surge pulse/line to line); ±1 kV (according to IEC 61000-4-5; surge pulse/line to ground) |
|
· ● Interference immunity on signal cables >30m |
±2 kV acc. to IEC 61000-4-5, surge, length > 30 m |
±2 kV acc. to IEC 61000-4-5, surge, length > 30 m |
±2 kV acc. to IEC 61000-4-5, surge, length > 30 m |
±2 kV acc. to IEC 61000-4-5, surge, length > 30 m |
|
· ● Interference immunity on signal cables < 30m |
±1 kV acc. to IEC 61000-4-4; burst; length < 3 m; ±2 kV acc. to IEC 61000-4-4; burst; length > 3 m |
±1 kV acc. to IEC 61000-4-4; burst; length < 3 m; ±2 kV acc. to IEC 61000-4-4; burst; length > 3 m |
±1 kV acc. to IEC 61000-4-4; burst; length < 3 m; ±2 kV acc. to IEC 61000-4-4; burst; length > 3 m |
±1 kV acc. to IEC 61000-4-4; burst; length < 3 m; ±2 kV acc. to IEC 61000-4-4; burst; length > 3 m |
|
Interference immunity to magnetic fields |
|
|
|
|
|
· ● Interference immunity to magnetic fields at 50 Hz |
100 A/m; to IEC 61000-4-8 |
100 A/m; to IEC 61000-4-8 |
100 A/m; to IEC 61000-4-8 |
100 A/m; to IEC 61000-4-8 |
|
Emission of conducted and non-conducted interference |
|
|
|
|
|
· ● Interference emission via line/AC current cables |
EN 61000-6-4:2007 +A1:2011 (industrial environments), EN 61000-6-3:2007 +A1:2011 (residential environments), CISPR 22 Class B, FCC Class A |
EN 61000-6-4:2007 +A1:2011 (industrial environments), EN 61000-6-3:2007 +A1:2011 (residential environments), CISPR 22 Class B, FCC Class A |
EN 61000-6-4:2007 +A1:2011 (industrial environments), EN 61000-6-3:2007 +A1:2011 (residential environments), CISPR 22 Class B, FCC Class A |
EN 61000-6-4:2007 +A1:2011 (industrial environments), EN 61000-6-3:2007 +A1:2011 (residential environments), CISPR 22 Class B, FCC Class A |
|
Standards, approvals, certificates |
|
|
|
|
|
CE mark |
Yes |
Yes |
Yes |
Yes |
|
UL approval |
Yes |
Yes |
Yes |
Yes |
|
Dust protection |
Protection against foreign bodies > 1 mm |
Protection against foreign bodies > 1 mm |
Protection against foreign bodies > 1 mm |
Protection against foreign bodies > 1 mm |
|
Ambient conditions |
|
|
|
|
|
Ambient temperature during operation |
|
|
|
|
|
· ● Ambient temperature during operation |
0 °C up to 55 °C |
0 °C up to 55 °C |
0 °C up to 55 °C |
0 °C up to 55 °C |
|
Ambient temperature during storage/transportation |
|
|
|
|
|
· ● min. |
-20 °C |
-20 °C |
-20 °C |
-20 °C |
|
· ● max. |
70 °C |
70 °C |
70 °C |
70 °C |
|
Relative humidity |
|
|
|
|
|
· ● Relative humidity |
5 ... 85 % at 30 °C, no condensation |
5 ... 85 % at 30 °C, no condensation |
5 ... 85 % at 30 °C, no condensation |
5 ... 85 % at 30 °C, no condensation |
|
Vibrations |
|
|
|
|
|
· ● Vibration resistance during operation acc. to IEC 60068-2-6 |
Tested according to IEC 6068-2-6; 5 Hz to 9 Hz: 3.5 mm, 9 Hz to 500 Hz: 9,8 m/s² |
Tested according to IEC 6068-2-6; 5 Hz to 9 Hz: 3.5 mm, 9 Hz to 500 Hz: 9,8 m/s² |
Tested according to IEC 6068-2-6; 5 Hz to 9 Hz: 3.5 mm, 9 Hz to 500 Hz: 9,8 m/s² |
Tested according to IEC 6068-2-6; 5 Hz to 9 Hz: 3.5 mm, 9 Hz to 500 Hz: 9,8 m/s² |
|
Shock testing |
|
|
|
|
|
· ● Shock load during operation |
Tested according to IEC 60068-2-27: 150 m/s², 11 ms |
Tested according to IEC 60068-2-27: 150 m/s², 11 ms |
Tested according to IEC 60068-2-27: 150 m/s², 11 ms |
Tested according to IEC 60068-2-27: 150 m/s², 11 ms |
|
Operating systems |
|
|
|
|
|
pre-installed operating system |
|
|
|
|
|
· ● Windows 10 Enterprise |
No |
No |
No |
No |
|
Dimensions |
|
|
|
|
|
Width |
85 mm |
85 mm |
85 mm |
85 mm |
|
Height |
85 mm |
104 mm |
85 mm |
104 mm |
|
Depth |
41 mm |
41 mm |
41 mm |
41 mm |
|
Article number |
6AG4021-0AA11-1BA0 |
6AG4021-0AB11-1BA0 |
6AG4021-0AB11-1CA0 |
6AG4021-0AB12-1BA0 |
6AG4021-0AB12-1CA0 |
|
SIMATIC IPC127E |
SIMATIC IPC127E |
SIMATIC IPC127E |
SIMATIC IPC127E |
SIMATIC IPC127E |
|
|
Installation type/mounting |
|
|
|
|
|
|
Design |
Box PC, built-in unit |
Box PC, built-in unit |
Box PC, built-in unit |
Box PC, built-in unit |
Box PC, built-in unit |
|
Supply voltage |
|
|
|
|
|
|
Type of supply voltage |
24 V DC |
24 V DC |
24 V DC |
24 V DC |
24 V DC |
|
Mains buffering |
|
|
|
|
|
|
· ● Mains/voltage failure stored energy time |
5 ms |
5 ms |
5 ms |
5 ms |
5 ms |
|
Processor |
|
|
|
|
|
|
Processor type |
Intel Atom E3930, 1.3 GHz, 2 cores |
Intel Atom E3940, 1.6 GHz, 4 cores |
Intel Atom E3940, 1.6 GHz, 4 cores |
Intel Atom E3940, 1.6 GHz, 4 cores |
Intel Atom E3940, 1.6 GHz, 4 cores |
|
Drives |
|
|
|
|
|
|
SSD |
Yes; 64 GB |
Yes; 64 GB |
Yes; 128 GB |
Yes; 64 GB |
Yes; 128 GB |
|
Memory |
|
|
|
|
|
|
Type of memory |
DDR4 |
DDR4 |
DDR4 |
DDR4 |
DDR4 |
|
Main memory |
2 GB RAM |
4 GB RAM |
4 GB RAM |
4 GB RAM |
4 GB RAM |
|
Interfaces |
|
|
|
|
|
|
Number of industrial Ethernet interfaces |
2; 2x RJ45 (independent) |
2; 2x RJ45 (independent) |
2; 2x RJ45 (independent) |
3; 3x Ethernet (RJ45) |
3; 3x Ethernet (RJ45) |
|
Number of PROFINET interfaces |
2 |
2 |
2 |
3 |
3 |
|
USB port |
2x USB 3.0 |
2x USB 3.0 |
2x USB 3.0 |
4x USB 3.0 |
4x USB 3.0 |
|
Connection for keyboard/mouse |
USB / USB |
USB / USB |
USB / USB |
USB / USB |
USB / USB |
|
Video interfaces |
|
|
|
|
|
|
· ● Graphics interface |
1x DisplayPort |
1x DisplayPort |
1x DisplayPort |
1x DisplayPort |
1x DisplayPort |
|
Industrial Ethernet |
|
|
|
|
|
|
· ● Industrial Ethernet interface |
2x Ethernet (RJ45) |
2x Ethernet (RJ45) |
2x Ethernet (RJ45) |
3x Ethernet (RJ45) |
3x Ethernet (RJ45) |
|
· — 100 Mbps |
Yes |
Yes |
Yes |
Yes |
Yes |
|
· — 1000 Mbps |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Protocols |
|
|
|
|
|
|
Protocols (Ethernet) |
|
|
|
|
|
|
· ● TCP/IP |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Integrated Functions |
|
|
|
|
|
|
Monitoring functions |
|
|
|
|
|
|
· ● Temperature monitoring |
Yes |
Yes |
Yes |
Yes |
Yes |
|
· ● Watchdog |
Yes |
Yes |
Yes |
Yes |
Yes |
|
· ● Status LEDs |
1x power, 3x user |
1x power, 3x user |
1x power, 3x user |
1x power, 3x user |
1x power, 3x user |
|
· ● Fan |
No |
No |
No |
No |
No |
|
EMC |
|
|
|
|
|
|
Interference immunity against discharge of static electricity |
|
|
|
|
|
|
· ● Interference immunity against discharge of static electricity |
±6 kV contact discharge acc. to IEC 61000-4-2; ±8 kV air discharge acc. to IEC 61000-4-2 |
±6 kV contact discharge acc. to IEC 61000-4-2; ±8 kV air discharge acc. to IEC 61000-4-2 |
±6 kV contact discharge acc. to IEC 61000-4-2; ±8 kV air discharge acc. to IEC 61000-4-2 |
±6 kV contact discharge acc. to IEC 61000-4-2; ±8 kV air discharge acc. to IEC 61000-4-2 |
±6 kV contact discharge acc. to IEC 61000-4-2; ±8 kV air discharge acc. to IEC 61000-4-2 |
|
Interference immunity against high-frequency electromagnetic fields |
|
|
|
|
|
|
· ● Interference immunity against high frequency radiation |
10 V/m, 80 MHz to 2 GHz, 80 % AM acc. to IEC 61000-4-3; 3 V/m, 2 GHz to 2.7 GHz, 80 % AM acc. to IEC 61000-4-3; 10 V, 10 kHz to 80 MHz, 80 % AM acc. to IEC 61000-4-6 |
10 V/m, 80 MHz to 2 GHz, 80 % AM acc. to IEC 61000-4-3; 3 V/m, 2 GHz to 2.7 GHz, 80 % AM acc. to IEC 61000-4-3; 10 V, 10 kHz to 80 MHz, 80 % AM acc. to IEC 61000-4-6 |
10 V/m, 80 MHz to 2 GHz, 80 % AM acc. to IEC 61000-4-3; 3 V/m, 2 GHz to 2.7 GHz, 80 % AM acc. to IEC 61000-4-3; 10 V, 10 kHz to 80 MHz, 80 % AM acc. to IEC 61000-4-6 |
10 V/m, 80 MHz to 2 GHz, 80 % AM acc. to IEC 61000-4-3; 3 V/m, 2 GHz to 2.7 GHz, 80 % AM acc. to IEC 61000-4-3; 10 V, 10 kHz to 80 MHz, 80 % AM acc. to IEC 61000-4-6 |
10 V/m, 80 MHz to 2 GHz, 80 % AM acc. to IEC 61000-4-3; 3 V/m, 2 GHz to 2.7 GHz, 80 % AM acc. to IEC 61000-4-3; 10 V, 10 kHz to 80 MHz, 80 % AM acc. to IEC 61000-4-6 |
|
Interference immunity to cable-borne interference |
|
|
|
|
|
|
· ● Interference immunity on supply cables |
±2 kV (according to IEC 61000-4-4; burst); ±0,5 kV (according to IEC 61000-4-5; surge pulse/line to line); ±1 kV (according to IEC 61000-4-5; surge pulse/line to ground) |
±2 kV (according to IEC 61000-4-4; burst); ±0,5 kV (according to IEC 61000-4-5; surge pulse/line to line); ±1 kV (according to IEC 61000-4-5; surge pulse/line to ground) |
±2 kV (according to IEC 61000-4-4; burst); ±0,5 kV (according to IEC 61000-4-5; surge pulse/line to line); ±1 kV (according to IEC 61000-4-5; surge pulse/line to ground) |
±2 kV (according to IEC 61000-4-4; burst); ±0,5 kV (according to IEC 61000-4-5; surge pulse/line to line); ±1 kV (according to IEC 61000-4-5; surge pulse/line to ground) |
±2 kV (according to IEC 61000-4-4; burst); ±0,5 kV (according to IEC 61000-4-5; surge pulse/line to line); ±1 kV (according to IEC 61000-4-5; surge pulse/line to ground) |
|
· ● Interference immunity on signal cables >30m |
±2 kV acc. to IEC 61000-4-5, surge, length > 30 m |
±2 kV acc. to IEC 61000-4-5, surge, length > 30 m |
±2 kV acc. to IEC 61000-4-5, surge, length > 30 m |
±2 kV acc. to IEC 61000-4-5, surge, length > 30 m |
±2 kV acc. to IEC 61000-4-5, surge, length > 30 m |
|
· ● Interference immunity on signal cables < 30m |
±1 kV acc. to IEC 61000-4-4; burst; length < 3 m; ±2 kV acc. to IEC 61000-4-4; burst; length > 3 m |
±1 kV acc. to IEC 61000-4-4; burst; length < 3 m; ±2 kV acc. to IEC 61000-4-4; burst; length > 3 m |
±1 kV acc. to IEC 61000-4-4; burst; length < 3 m; ±2 kV acc. to IEC 61000-4-4; burst; length > 3 m |
±1 kV acc. to IEC 61000-4-4; burst; length < 3 m; ±2 kV acc. to IEC 61000-4-4; burst; length > 3 m |
±1 kV acc. to IEC 61000-4-4; burst; length < 3 m; ±2 kV acc. to IEC 61000-4-4; burst; length > 3 m |
|
Interference immunity to magnetic fields |
|
|
|
|
|
|
· ● Interference immunity to magnetic fields at 50 Hz |
100 A/m; to IEC 61000-4-8 |
100 A/m; to IEC 61000-4-8 |
100 A/m; to IEC 61000-4-8 |
100 A/m; to IEC 61000-4-8 |
100 A/m; to IEC 61000-4-8 |
|
Emission of conducted and non-conducted interference |
|
|
|
|
|
|
· ● Interference emission via line/AC current cables |
EN 61000-6-4:2007 +A1:2011 (industrial environments), EN 61000-6-3:2007 +A1:2011 (residential environments), CISPR 22 Class B, FCC Class A |
EN 61000-6-4:2007 +A1:2011 (industrial environments), EN 61000-6-3:2007 +A1:2011 (residential environments), CISPR 22 Class B, FCC Class A |
EN 61000-6-4:2007 +A1:2011 (industrial environments), EN 61000-6-3:2007 +A1:2011 (residential environments), CISPR 22 Class B, FCC Class A |
EN 61000-6-4:2007 +A1:2011 (industrial environments), EN 61000-6-3:2007 +A1:2011 (residential environments), CISPR 22 Class B, FCC Class A |
EN 61000-6-4:2007 +A1:2011 (industrial environments), EN 61000-6-3:2007 +A1:2011 (residential environments), CISPR 22 Class B, FCC Class A |
|
Degree and class of protection |
|
|
|
|
|
|
IP degree of protection |
IP40 |
IP40 |
IP40 |
IP40 |
IP40 |
|
Standards, approvals, certificates |
|
|
|
|
|
|
CE mark |
Yes |
Yes |
Yes |
Yes |
Yes |
|
UL approval |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Dust protection |
Protection against foreign bodies > 1 mm |
Protection against foreign bodies > 1 mm |
Protection against foreign bodies > 1 mm |
Protection against foreign bodies > 1 mm |
Protection against foreign bodies > 1 mm |
|
Ambient conditions |
|
|
|
|
|
|
Ambient temperature during operation |
|
|
|
|
|
|
· ● Ambient temperature during operation |
0 °C up to 55 °C |
0 °C up to 55 °C |
0 °C up to 55 °C |
0 °C up to 55 °C |
0 °C up to 55 °C |
|
Ambient temperature during storage/transportation |
|
|
|
|
|
|
· ● min. |
-20 °C |
-20 °C |
-20 °C |
-20 °C |
-20 °C |
|
· ● max. |
70 °C |
70 °C |
70 °C |
70 °C |
70 °C |
|
Relative humidity |
|
|
|
|
|
|
· ● Relative humidity |
5 ... 85 % at 30 °C, no condensation |
5 ... 85 % at 30 °C, no condensation |
5 ... 85 % at 30 °C, no condensation |
5 ... 85 % at 30 °C, no condensation |
5 ... 85 % at 30 °C, no condensation |
|
Vibrations |
|
|
|
|
|
|
· ● Vibration resistance during operation acc. to IEC 60068-2-6 |
Tested according to IEC 6068-2-6; 5 Hz to 9 Hz: 3.5 mm, 9 Hz to 500 Hz: 9,8 m/s² |
Tested according to IEC 6068-2-6; 5 Hz to 9 Hz: 3.5 mm, 9 Hz to 500 Hz: 9,8 m/s² |
Tested according to IEC 6068-2-6; 5 Hz to 9 Hz: 3.5 mm, 9 Hz to 500 Hz: 9,8 m/s² |
Tested according to IEC 6068-2-6; 5 Hz to 9 Hz: 3.5 mm, 9 Hz to 500 Hz: 9,8 m/s² |
Tested according to IEC 6068-2-6; 5 Hz to 9 Hz: 3.5 mm, 9 Hz to 500 Hz: 9,8 m/s² |
|
Shock testing |
|
|
|
|
|
|
· ● Shock load during operation |
Tested according to IEC 60068-2-27: 150 m/s², 11 ms |
Tested according to IEC 60068-2-27: 150 m/s², 11 ms |
Tested according to IEC 60068-2-27: 150 m/s², 11 ms |
Tested according to IEC 60068-2-27: 150 m/s², 11 ms |
Tested according to IEC 60068-2-27: 150 m/s², 11 ms |
|
Operating systems |
|
|
|
|
|
|
pre-installed operating system |
Windows 10 Enterprise 2016 LTSB, 64 bit, MUI |
Windows 10 Enterprise 2016 LTSB, 64 bit, MUI |
Windows 10 Enterprise 2016 LTSB, 64 bit, MUI |
Windows 10 Enterprise 2016 LTSB, 64 bit, MUI |
Windows 10 Enterprise 2016 LTSB, 64 bit, MUI |
|
pre-installed operating system |
|
|
|
|
|
|
· ● Windows 10 |
Yes; Windows 10 Enterprise 2016 LTSB, 64 bit, MUI |
||||
|
· ● Windows 10 Enterprise |
Yes |
Yes; Windows 10 Enterprise 2016 LTSB, 64 bit, MUI |
Yes; Windows 10 Enterprise 2016 LTSB, 64 bit, MUI |
Yes; Windows 10 Enterprise 2016 LTSB, 64 bit, MUI |
Yes; Windows 10 Enterprise 2016 LTSB, 64 bit, MUI |
|
Dimensions |
|
|
|
|
|
|
Width |
85 mm |
85 mm |
85 mm |
85 mm |
85 mm |
|
Height |
85 mm |
85 mm |
85 mm |
104 mm |
104 mm |
|
Depth |
41 mm |
41 mm |
41 mm |
41 mm |
41 mm |
| 购买人 | 会员级别 | 数量 | 属性 | 购买时间 |
|---|
-
西门子工控机 SIMATIC WinCC STEP7 TIA -
西门子工控机 127E -
西门子工控机 547G -
西门子工控机 IPC3000 SMART -
西门子交换机X200 西门子工控机 -
西门子交换机X000 西门子工控机 -
西门子工控机 基本SINAMICS V -
西门子工控机 常规SINAMICS G -
西门子工控机 SIMATIC HMI精智面板 -
西门子工控机 SIMATIC HMI精简面板
